Alta Acoustic Ceiling PanelsAlta Acoustic Ceiling Panels

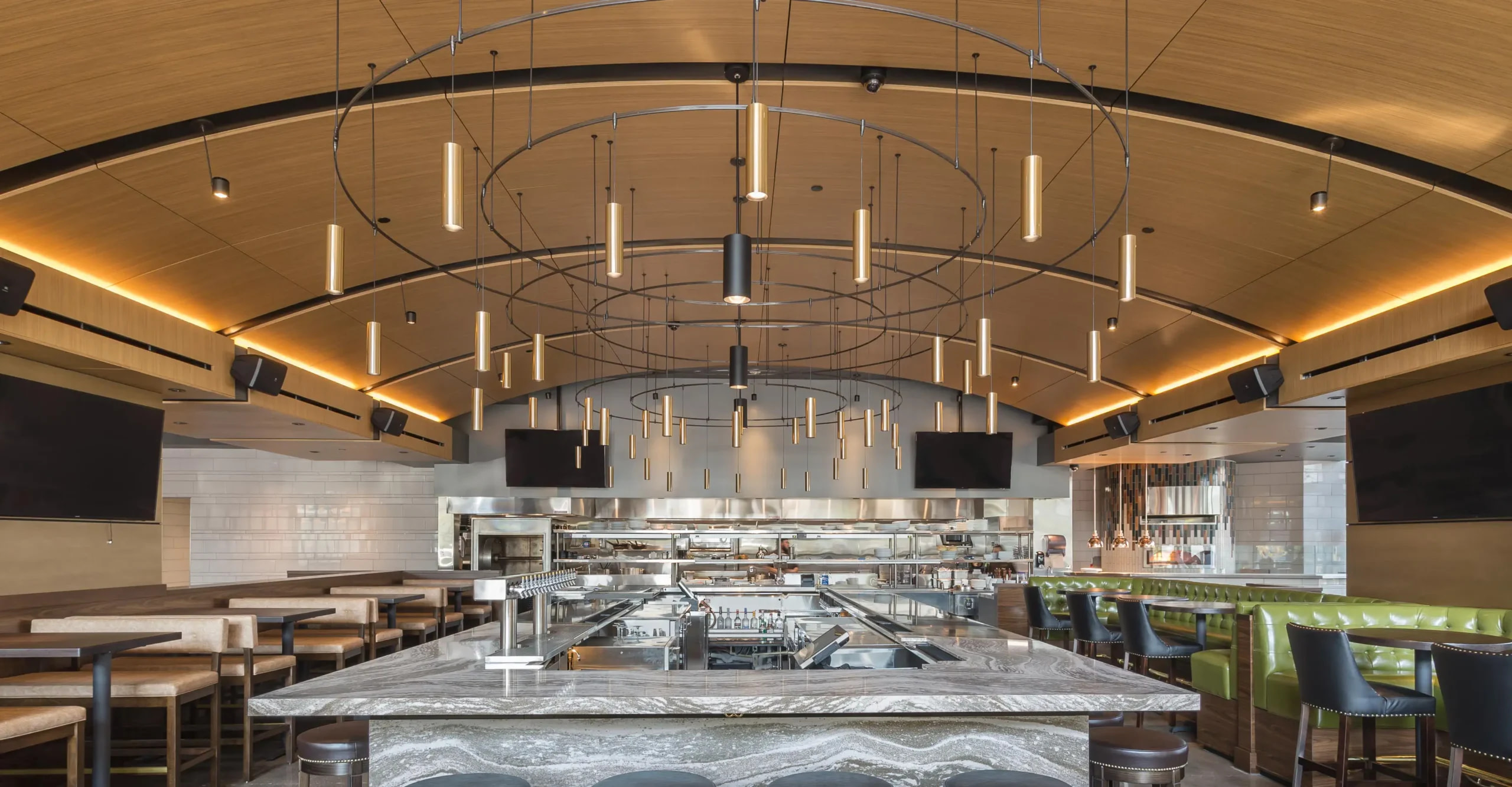

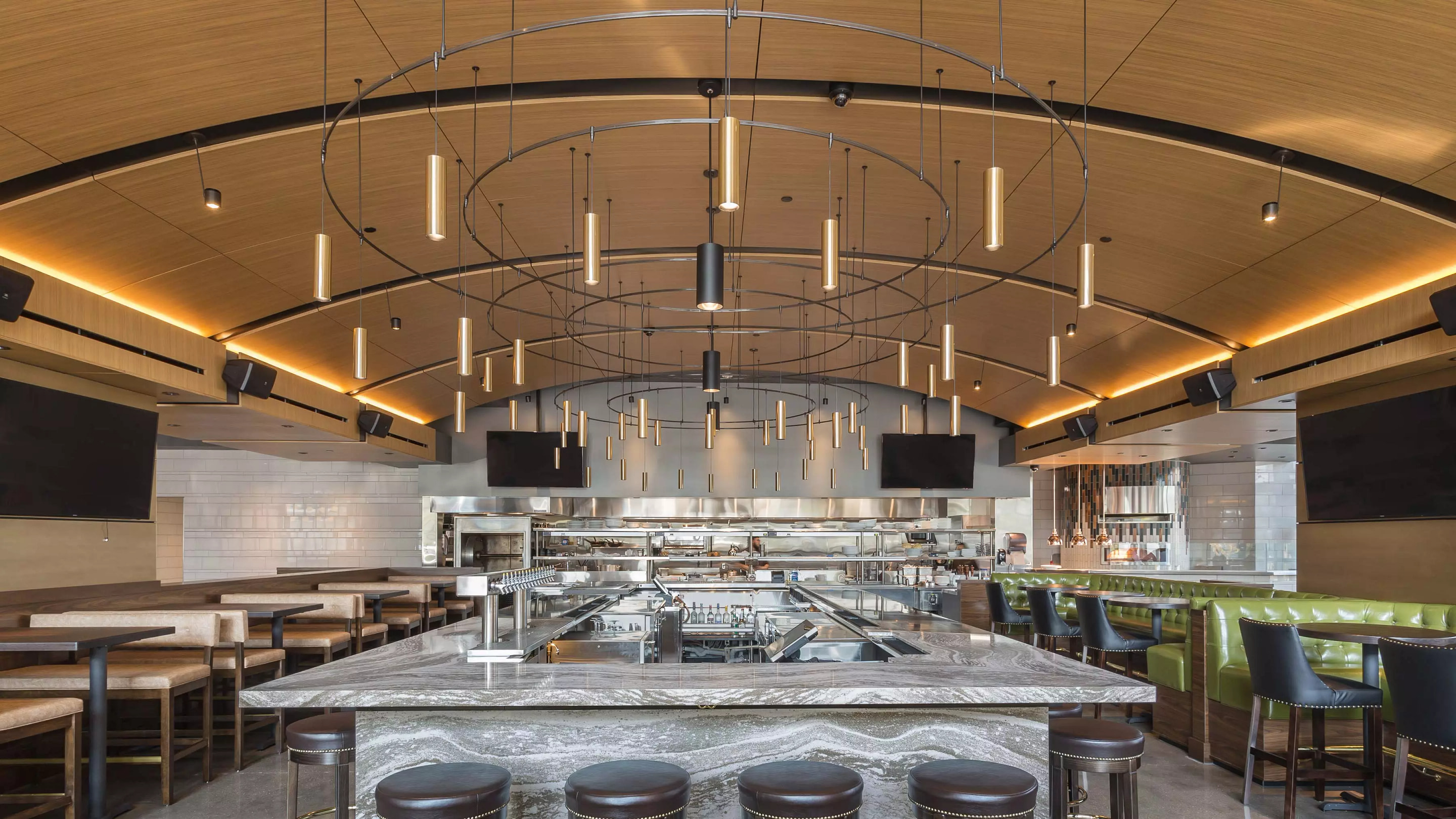

HAZELWOOD FOOD + DRINK
//
BLOOMINGTON, MN

Nothing Else is
Quiet Like These.

Within the crowded field of acoustic ceiling panels, Alta Panels stand apart. No other acoustic ceiling panel comes close to matching Alta’s list of best-in-class features.

Acoustically, Alta Panels absorb and block more sound energy than any other acoustic ceiling panels. Even more exceptional— unlike other acoustic ceiling panels, Alta Panel’s acoustic performance is achieved without requiring a plenum space, a blanket of acoustic insulation, or the use of laboratory testing “tricks” designed to artificially inflate the acoustic test results.

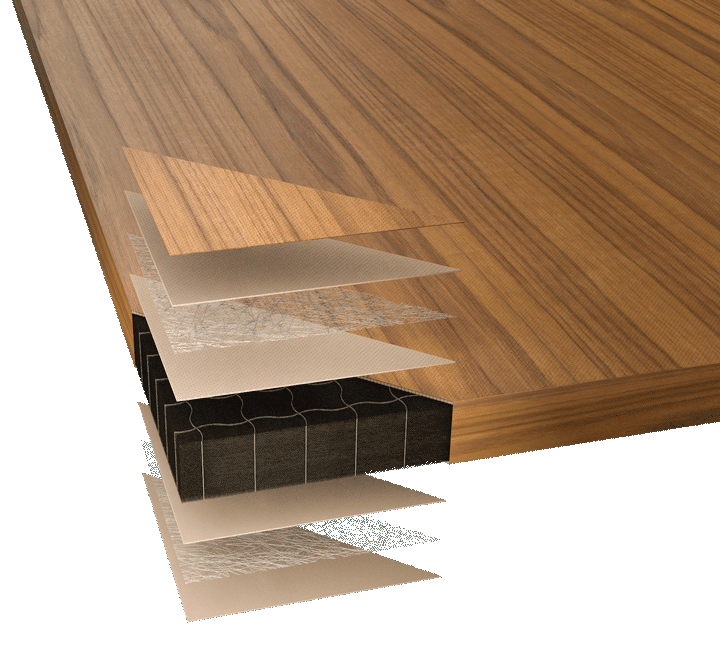

Defining and pioneering the future of acoustic ceiling panels, Alta Acoustic Panels are packed with patented acoustic technology and patent-pending composite material technology.

Structurally, Alta panels have the highest specific strength, the lowest expansion/contraction, and the best long-term stability of any comparable acoustic ceiling panel. This translates into easier & more adaptable installations, tighter & more precise spacing between panels, and greater flexibility in panel sizes (up to 5’x12′).

Visually, Alta panels offer the industry’s most comprehensive selection of options including hundreds of genuine wood species/cuts, the full color spectrum of paints, and even high-resolution UV-printed images. Alta panels can be cut into custom shapes and even formed into rigid, internally supported curves.

You may think it’s strange how unique Alta Acoustic Ceiling Panels are, and you wouldn’t be wrong.  Alta’s exceptional properties do present one drawback worth noting— for ceiling panel projects requiring an equally-suitable alternate to Alta panels, there simply isn’t one.  When you combine all of Alta’s features, you’ll realize that these acoustic ceiling panels aren’t just “best in class”, they’re “only in class”.

Nothing Else is
Quiet Like These.

Within the crowded field of acoustic ceiling panels, Alta Panels stand apart.

No other acoustic ceiling panel is close to matching Alta’s list of best-in-class features.

Acoustically, Alta Panels absorb and block more sound energy than any other acoustic ceiling panels. Even more exceptional— unlike other acoustic ceiling panels, Alta Panel’s acoustic performance is achieved without requiring a plenum space, a blanket of acoustic insulation, or the use of laboratory testing “tricks” designed to artificially inflate the acoustic test results.

Defining and pioneering the future of acoustic ceiling panels, Alta Acoustic Panels are packed with patented acoustic technology and patent-pending composite material technology.

Structurally, Alta panels have the highest specific strength, the lowest expansion/contraction, and the best long-term stability of any comparable acoustic ceiling panel. This translates into easier & more adaptable installations, tighter & more precise spacing between panels, and greater flexibility in panel sizes (up to 5’x12′).

Visually, Alta panels offer the industry’s most comprehensive selection of options including hundreds of genuine wood species/cuts, the full color spectrum of paints, and even high-resolution UV-printed images. Alta panels can be cut into custom shapes and even formed into rigid, internally supported curves.

You may think it’s strange how unique Alta Acoustic Ceiling Panels are, and you wouldn’t be wrong.  Alta’s exceptional properties do present one drawback worth noting— for ceiling panel projects requiring an equally-suitable alternate to Alta panels, there simply isn’t one.  When you combine all of Alta’s features, you’ll realize that these acoustic ceiling panels aren’t just “best in class”, they’re “only in class”.

Alta Acoustic Ceiling Panels'

Unique Advantages.

Alta Acoustic Ceiling Panels’ Unique Advantages.

ALTA CEILING PANELS INSTALLATION OPTIONS

ALTA CEILING PANELS
INSTALLATION OPTIONS

Suspended Grid
Drop In

The unique strength and stability of Alta Acoustic Panels allows them to be the first micro-perforated wood panels to function as drop-in panels in standard ceiling grids without the susceptibility to sagging and warping. Recommended sizes are 2’x2’ and 2’x4’.

Suspended Grid
Drop In

The unique strength and stability of Alta Acoustic Panels allows them to be the first micro-perforated wood panels to function as drop-in panels in standard ceiling grids without the susceptibility to sagging and warping. Recommended sizes are 2’x2’ and 2’x4’.

Suspended Grid
using Torsion Springs

Torsion springs are ideal for applications requiring an accessible plenum space, while allowing reveals between panels as tight as 1/8”. Panel sizes are available up to 5’x12’.

Panels 3’ and wider may require magnetic saddle clips.

Suspended Grid
with Torsion Spring

Torsion springs are ideal for applications requiring an accessible plenum space, while allowing reveals between panels as tight as 1/8”. Panel sizes are available up to 5’x12’.

Panels 3’ and wider may require magnetic saddle clips.

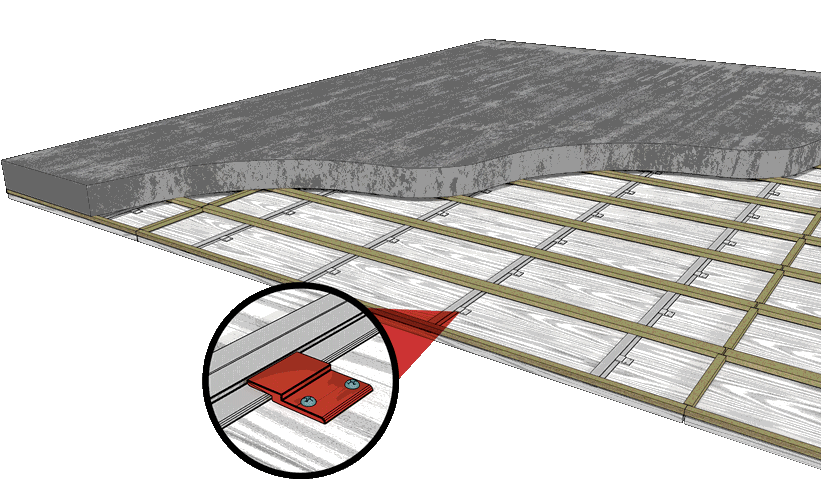

Direct Mount
using Z-Clips

Since Alta Acoustic Panels are the only ceiling panels not requiring a large plenum space or a layer of sound-absorbing insulation for acoustic performance, they can be directly mounted to the ceiling. Sizes up to 5’x12’ can be installed using panel-mounted z-clips and ceiling-mounted z-bars.

Direct Mount
with Z-Clip

Since Alta Acoustic Panels are the only ceiling panels not requiring a large plenum space or a layer of sound-absorbing insulation for acoustic performance, they can be directly mounted to the ceiling. Sizes up to 5’x12’ can be installed using panel-mounted z-clips and ceiling-mounted z-bars.

ALTA CEILING PANELS CORE OPTIONS

ALTA CEILING PANELS
CORE OPTIONS

ITEMDESCRIPTIONAVAILABLE WIDTHS
(nominal)
AVAILABLE LENGTHS
(nominal)
NRCCACFIRE
CLASS
LR PANEL SERIES
CP-LRM251" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144".8039A
CP-LRM512" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144".9539+A
RF PANEL SERIES
CP-RFM193/4" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144".7043A
CP-RFM251" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144".9046A
CP-RFM381 1/2" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144".9546+A
CP-RFM512" Thick Acoustic Wood Ceiling PanelsUp To 60"Up To 120" 144"1.0046+A
Custom Ceiling Panels widths and lengths available. * 144” length subject to veneer availability.

STANDARD WOODS

SPECIALTY WOODS

STANDARD PAINTS

CUSTOM FINISHES

ALTA CEILING PANELS SPECIFICATIONS

ALTA CEILING PANELS
SPECIFICATIONS

Material

Micro-Perforated Acoustic Ceiling Panels

Surface Finish

Clear or Tinted Catalyzed Lacquer
Clear or Tinted
Ulti-Matte  Flat Varnish

Accessories

Installation hardware to be ordered separately.

Weight

CP-LRM25 (1” thick LR Series) 1.8 lbs/ft²
CP-LRM51 (2” thick LR Series) 3.2 lbs/ft²
CP-RFM19 (1” thick RF Series) 1.5 lbs/ft²
CP-RFM25 (1” thick RF Series) 1.8 lbs/ft²
CP-RFM38 (1½” thick RF Series) 2.5 lbs/ft²
CP-RFM51 (2” thick RF Series) 3.2 lbs/ft²

Fire Performance

Alta Ceiling Panels contain a non-combustible fiberglass core. A thin (less than .025 inches) layer of veneer, paint, or film finish is applied. Depending on the use and the type of wood selected, Alta Ceiling Panels can be used in Class A environments (IBC Chapter 8. Section 803).

LEED Credits

EA 1 Optimized Energy Performance
MR 4.1 & 4.2 Recycled Content Credit-
Core 57% pre-consumer, 0% post-consumer.

MR 7 Certified Wood contact sales staff.
EQ 4.4 Composite Wood (no added urea formaldehyde)
EQ 7 & 7.1 Thermal Comfort
EQ 9 Enhanced Acoustical Performance
