One of a Kind.
Kind of Amazing.

Latus Acoustic Wall Panels perfectly demonstrate how SoundPly’s innovative technology has disrupted the status quo.

Due to layers of patented and patent-pending technology, no other architectural or wood acoustic wall panel can match the sound absorbing performance, installation versatility, and discrete appearance of Latus Acoustic Panels.

By resolving the shortcomings inherent to other manufacturer’s architectural acoustic wall panels, Latus Acoustic Panels allow easier and discernibly more effective solutions for acoustically controlling an environment.

This is because Latus Panels were developed to directly address the three most persistent shortcomings of other architectural and wood acoustic wall panels— 1) their exaggerated acoustic performance claims, 2) their restrictive and tedious installations, and 3) their indicative and conspicuous appearances.

Pound For Pound, Absorb More Sound.

SoundPly products consistently outperform similar acoustic products, and Latus Wall Panels are no exception. No other acoustic wall panels absorb as much sound energy in such a small profile.

Furthermore, Latus Panel’s acoustic performance data is guaranteed to be accurate and reliably reproducible in real-world installations. Simply put, the acoustic performance that Latus Panels achieve in laboratory tests is the same performance they provide when they leave our factory, and the same performance they consistently maintain after they’re installed.

As unusual as it may seem, this is not the case with nearly every other architectural acoustic wall panel. The reason most other acoustic wall panel manufacturers aren’t able to guarantee their acoustic performance claims is because their panels actually aren’t very good at absorbing sound. Their panels primarily function as visual and protective screens, letting sound energy pass through them, into the sound absorbing system installed behind them.

Direct-To-Wall Install.

Other acoustic wall panels feature traditional, simple acoustic technology yet require highly engineered, sophisticated installation procedures. Latus panels are just the opposite— they combine cutting-edge, proprietary acoustic technology with simple, intuitive installation methods.

Similar to non-acoustic architectural wood wall panels, Latus Panels can be installed directly to the wall using Z-clips, wood cleats, or most other traditional methods. Depending on the panel size and placement, even faster installations can be performed using the propriety SoundPly bayonet clips.

Latus panels are also much lighter than wall panels containing MDF or particleboard cores, further adding to their ease of handling and installation. Because Latus panels aren’t prone to the excessive expansion/ contraction, warping, or sagging common with other acoustic wood wall panels, adjacent Latus Panels can be mounted with tighter reveals, using less mounting hardware.

“Panel … Latus Panel.”

If James Bond was an architectural acoustic wall panel, he’d undoubtedly be a Latus Panel. The attractive appearance of a Latus Panel reveals little of its potent effectiveness at eliminating sound. The panel’s precisely placed, sound absorbing micro-perforations become indistinguishable at a normal viewing distance, allowing them to perform their duty while seamlessly blending into their surroundings.

Other acoustic wood panels that contain conspicuous holes, slots, or grooves have an unmistakable appearance. Their look is emblematic of their outdated acoustic technology, and a likely factor contributing to their decline in popularity. In contrast, the indistinct, unrevealing acoustic features of Latus Panels neither define nor compromise their look, resulting an enduring, timeless appearance.

One of a Kind.
Kind of Amazing.

Latus Acoustic Wall Panels perfectly demonstrate how SoundPly’s innovative technology has disrupted the status quo.

Due to layers of patented and patent-pending technology, no other architectural or wood acoustic wall panel can match the sound absorbing performance, installation versatility, and discrete appearance of Latus Acoustic Panels.

This is because Latus Panels were developed to directly address the three most persistent shortcomings of other architectural and wood acoustic wall panels— 1) their exaggerated acoustic performance claims, 2) their restrictive and tedious installations, and 3) their indicative and conspicuous appearances.

By resolving the shortcomings inherent to other manufacturer’s architectural acoustic wall panels, Latus Acoustic Panels allow easier and discernibly more effective solutions for acoustically controlling an environment.

Pound For Pound, Absorb More Sound.

SoundPly products consistently outperform similar acoustic products, and Latus Wall Panels are no exception. No other acoustic wall panels absorb as much sound energy in such a small profile.

Furthermore, Latus Panel’s acoustic performance data is guaranteed to be accurate and reliably reproducible in real-world installations. Simply put, the acoustic performance that Latus Panels achieve in laboratory tests is the same performance they provide when they leave our factory, and the same performance they consistently maintain after they’re installed.

As unusual as it may seem, this is not the case with nearly every other architectural acoustic wall panel. The reason most other acoustic wall panel manufacturers aren’t able to guarantee their acoustic performance claims is because their panels actually aren’t very good at absorbing sound. Their panels primarily function as visual and protective screens, letting sound energy pass through them, into the sound absorbing system installed behind them.

Direct-To-Wall Install.

Other acoustic wall panels feature traditional, simple acoustic technology yet require highly engineered, sophisticated installation procedures. Latus panels are just the opposite— they combine cutting-edge, proprietary acoustic technology with simple, intuitive installation methods.

Similar to non-acoustic architectural wood wall panels, Latus Panels can be installed directly to the wall using Z-clips, wood cleats, or most other traditional methods. Depending on the panel size and placement, even faster installations can be performed using the propriety SoundPly bayonet clips.

Latus panels are also much lighter than wall panels containing MDF or particleboard cores, further adding to their ease of handling and installation. Because Latus panels aren’t prone to the excessive expansion/ contraction, warping, or sagging common with other acoustic wood wall panels, adjacent Latus Panels can be mounted with tighter reveals, using less mounting hardware.

“Panel…
Latus  Panel.”

If James Bond was an architectural acoustic wall panel, he’d undoubtedly be a Latus Panel. The attractive appearance of a Latus Panel reveals little of its potent effectiveness at eliminating sound. The panel’s precisely placed, sound absorbing micro-perforations become indistinguishable at a normal viewing distance, allowing them to perform their duty while seamlessly blending into their surroundings.

Other acoustic wood panels that contain conspicuous holes, slots, or grooves have an unmistakable appearance. Their look is emblematic of their outdated acoustic technology, and a likely factor contributing to their decline in popularity. In contrast, the indistinct, unrevealing acoustic features of Latus Panels neither define nor compromise their look, resulting an enduring, timeless appearance.

Latus Acoustic Wall Panels'

Unique Advantages.

Latus Acoustic Wall Panels’ Unique Advantages.

LATUS WALL PANELS INSTALLATION OPTIONS

LATUS WALL PANELS
INSTALLATION OPTIONS

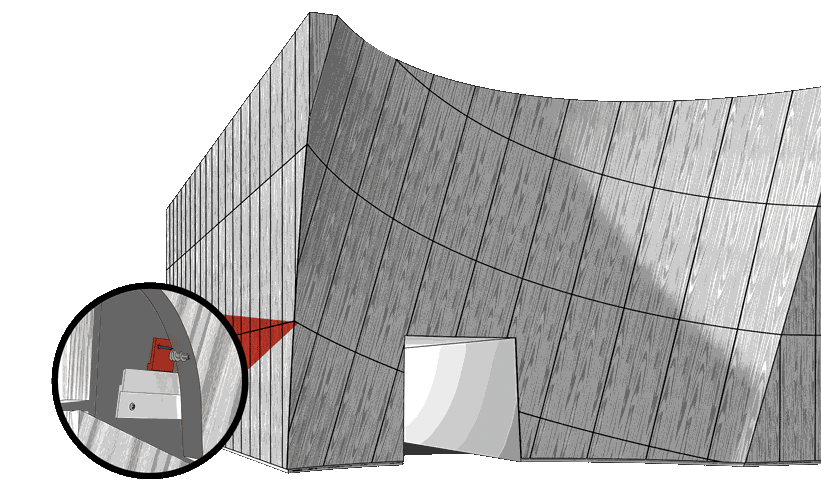

Direct Mount
using Z-Clips

Similar to traditional wall panels, Latus Panels can be directly mounted to walls using Z-clips. Sizes up to 5’x’12 can be installed using panel-mounted Z-clips and wall-mounted Z-bars.

Z-Clip
Direct Mount

Similar to traditional wall panels, Latus Panels can be directly mounted to walls using Z-clips. Sizes up to 5’x’12 can be installed using panel-mounted Z-clips and wall-mounted Z-bars.

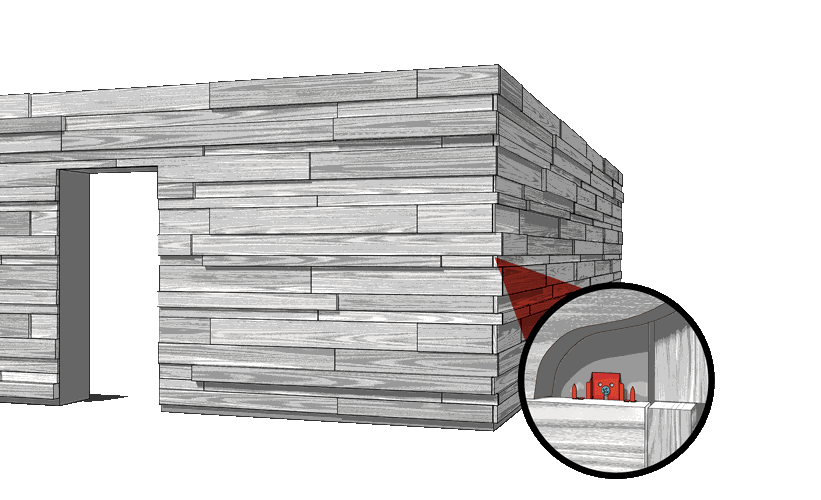

Direct Mount
using Bayonet Clips

For horizontal plank applications, Latus Panels can be attached to a wall using Bayonet Clips. Mounting to either vertical 15/16” hat channel, or directly into drywall, Bayonet Clips install easily and securely, while leaving a minimal reveal less than 1/8”.

Bayonet Clip
Direct Mount

For horizontal plank applications, Latus Panels can be attached to a wall using Bayonet Clips. Mounting to either vertical 15/16” hat channel, or directly into drywall, Bayonet Clips install easily and securely, while leaving a minimal reveal less than 1/8”.

LATUS WALL PANELS CORE OPTIONS

LATUS WALL PANELS
CORE OPTIONS

ITEM DESCRIPTION AVAILABLE WIDTHS
(nominal)
AVAILABLE LENGTHS
(nominal)
NRC CAC FIRE
CLASS
LR PANEL SERIES
WP-LRM19 3/4" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .70 39 A
WP-LRM25 1" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .80 39 A
WP-LRM38 1 1/2" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .85 39+ A
WP-LRM51 2" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .95 39+ A
RF PANEL SERIES
WP-RFM19 3/4" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .70 43 A
WP-RFM25 1" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .90 46 A
WP-RFM38 1 1/2" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" .95 46+ A
WP-RFM51 2" Thick Acoustic Wood Wall Panels Up To 60" Up To 120" 144" 1.00 46+ A
Custom Ceiling Panel widths and lengths available. * 144” length subject to veneer availability.

WOOD SPECIES

(A small sampling of the 715+ genuine wood species/slice/grade combinations in stock.)

SPECIALTY FINISHES

LATUS WALL PANELS SPECIFICATIONS

LATUS WALL PANELS
SPECIFICATIONS

Material

Acoustic Wall Panels consisting of a fully sealed, sound insulated, resonant cavity overlayed with a 2mm thick micro-perforated composite surface.

Face Options

• 715+ Wood Species/Slice/Grade combinations
• Custom Paint Colors in a variety of sheens
• Printed Images up to 1080dpi, color-fast UV cured

Finish Options

• Custom Stains for Wood Veneers
• Clear or Tinted Catalyzed Lacquer
• Clear or Tinted Ulti-Matte™ Flat Varnish

Weight

WP-LRM19 / WP-RFM19 (¾” thick) 1.5 lbs/ft²
WP-LRM25 / WP-RFM25 (1” thick) 1.8 lbs/ft²
WP-LRM38 / WP-RFM38 (1½” thick) 2.5 lbs/ft²
WP-LRM51 / WP-RFM51 (2” thick) 3.2 lbs/ft²

Fire Performance

Latus Wall Panels contain either a non-combustible rockwool or fiberglass core. A thin (less than .025 inches) layer of veneer, paint, or film finish is applied. Latus Wall Panels can be used in Class A environments (IBC Chapter 8. Section 803).

LEED Credits

LRRFMRc4 4.1 & 4.2 Recycled Content
15.6% pre-consumer, 8.7% post-consumer.

LRRFBDCv4  EQ Acoustic Performance
LRRFEQ 4.4 Low Emitting Materials
LRRFMaterial Ingredient Disclosure
