Planks.
Planks A Lot.

Lino Acoustic Planks unlock new, simpler, and more effective ways to combine exceptional acoustic control with the appearance of genuine wood and timber planks.

The handful of other acoustic plank systems on the market are prohibitively complex, require wide reveals between planks, a large plenum space, and a blanket of acoustic insulation held in place by a supportive layer of fabric.

Lino Acoustic Planks have no such limitations, providing both unfettered design freedom and unmatched sound suppression.

Although they may appear simply as natural timber planks, the highly engineered construction of Lino Acoustic Planks results in supernatural physical and acoustic properties.

Conceal Reveals.

Traditional acoustic planks rely on their reveals to allow sound energy to flow past them into the backloaded acoustic material. Reveals are not a factor in the sound absorption mechanics of Lino Planks. Consequently, they’re the only acoustic planks that offer the option of tight, closed, or open reveals — with no compromise in acoustic performance.

The exceptional adaptability of Lino Planks is because the planks themselves actually absorb sound. Whereas other “acoustic planks” are simply normal planks, acting as visual barriers for the real sound absorbing components located behind them.

Since Lino Planks have no plenum or cavity backspace requirements they can be directly mounted to the ceiling (or wall). And due to their light weight and exceptional strength, they can be easily suspended from traditional ceiling grids, without needing extra provisions for the additional weight and warping potential associated with traditional acoustic planks.

Planks.
Planks A Lot.

Lino Acoustic Planks unlock new, simpler, and more effective ways to combine exceptional acoustic control with the appearance of genuine wood and timber planks.

Other acoustic plank systems are prohibitively complex, requiring wide reveals between planks, a large plenum space, and a blanket of acoustic insulation held in place by a supportive layer of fabric.

Lino Acoustic Planks have no such limitations, providing both unfettered design freedom and unmatched sound suppression.

Although they may appear simply as natural timber planks, the highly engineered construction of Lino Acoustic Planks results in supernatural physical and acoustic properties.

Conceal Reveals.

Traditional acoustic planks rely on their reveals to allow sound energy to flow past them into the backloaded acoustic material. Reveals are not a factor in the sound absorption mechanics of Lino Planks. Consequently, they’re the only acoustic planks that offer the option of tight, closed, or open reveals — with no compromise in acoustic performance.

The exceptional adaptability of Lino Planks is because the planks themselves actually absorb sound. Whereas other “acoustic planks” are simply normal planks, acting as visual barriers for the real sound absorbing components located behind them.

Since Lino Planks have no plenum or cavity backspace requirements they can be directly mounted to the ceiling (or wall). And due to their light weight and exceptional strength, they can be easily suspended from traditional ceiling grids, without needing extra provisions for the additional weight and warping potential associated with traditional acoustic planks.

Lino Acoustic Ceiling Planks'

Unique Advantages.

Lino Acoustic Ceiling Planks’ Unique Advantages.

LINO CEILING PLANKS INSTALLATION OPTIONS

LINO CEILING PLANKS INSTALLATION OPTIONS

Suspended Grid
using Twist Clips

Twist clips are designed for plank systems with open reveals of 1” or greater. The twist clips attach easily to the back of the planks and provide a quick, secure, and visually clean installation.

Suspended Grid

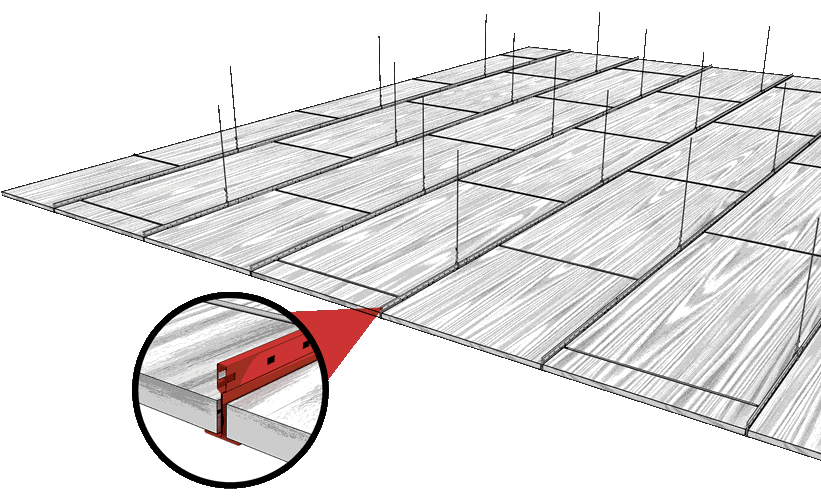

Drop In

The unique strength and stability of Alta Acoustic Panels allows them to be the first micro-perforated wood panels to function as drop-in panels in standard ceiling grids without the susceptibility to sagging and warping. Recommended sizes are 2’x2’ and 2’x4’.

Suspended Grid
using Bayonet Clips

For ceiling planks with tight reveals, Bayonet Clips are the recommend hardware fastener. The Bayonet Clips impale securely onto a plank’s edge, then fasten to the suspended grid using a self-tapping screw.

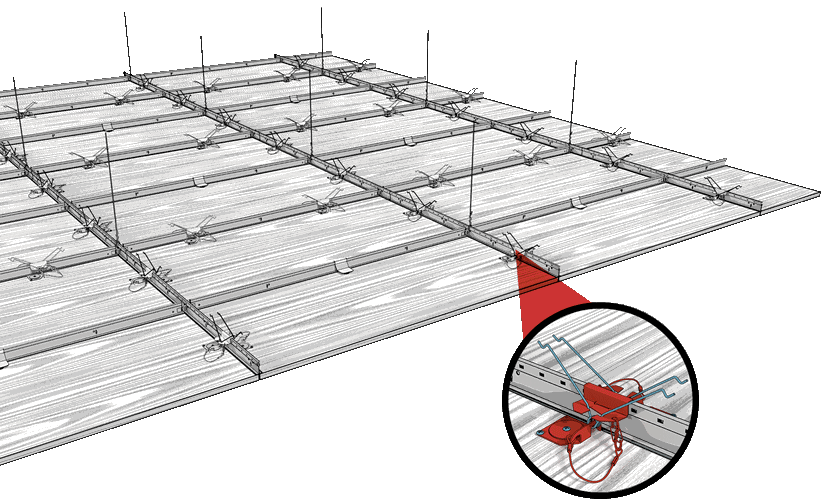

Suspended Grid
with Torsion Spring

Torsion springs are ideal for applications requiring an accessible plenum space, while allowing reveals between panels as tight as 1/8”. Panel sizes are available up to 5’x12’.

Panels 3’ and wider may require magnetic saddle clips.

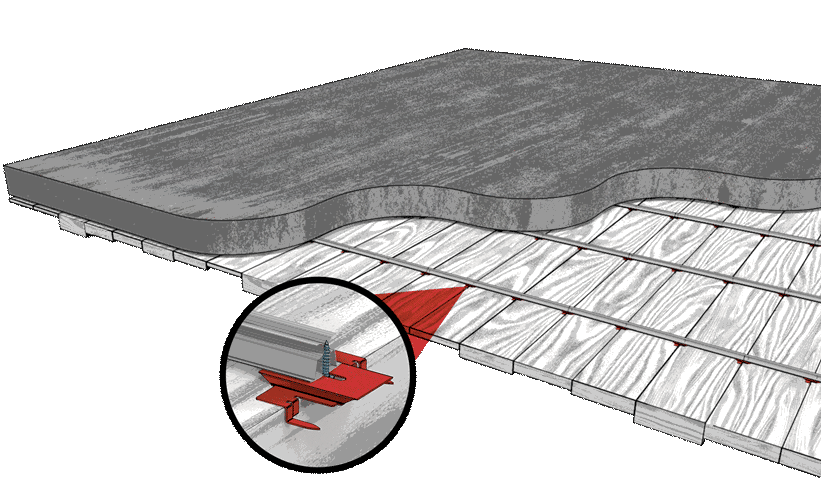

Direct Mount
using Bayonet Clips

For direct mounting to ceilings, it’s recommended that Bayonet Clips be fastened to a pre-installed 15/16” hat channel. In certain instances, Bayonet Clips can be anchored directly into drywall using wide-thread drywall screws.

Bayonet Clip
Direct Mount

For direct mounting to ceilings, it’s recommended that Bayonet Clips be fastened to a pre-installed 15/16” hat channel. In certain instances, Bayonet Clips can be anchored directly into drywall using wide-thread drywall screws.

LINO CEILING PLANKS CORE OPTIONS

LINO CEILING PLANKS
CORE OPTIONS

ITEM DESCRIPTION STANDARD WIDTHS
(nominal)
STANDARD LENGTHS
(nominal)
NRC CAC FIRE
CLASS
LR PANEL SERIES
PL-LRM25 1" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" .80 39 A
PL-LRM51 2" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" .95 39+ A
RF PANEL SERIES
PL-RFM19 3/4" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" .70 43 A
PL-RFM25 1" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" .90 46 A
PL-RFM38 1 1/2" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" .95 46+ A
PL-RFM51 2" Thick Acoustic Wood Planks 6" 8" 12" 96" 120" 144" 1.00 46+ A
Custom planks widths and lengths available. * 144” length subject to veneer availability.

WOOD SPECIES

(A small sampling of the 715+ genuine wood species/slice/grade combinations in stock.)

SPECIALTY FINISHES

LINO CEILING PLANKS SPECIFICATIONS

LINO CEILING PLANKS
SPECIFICATIONS

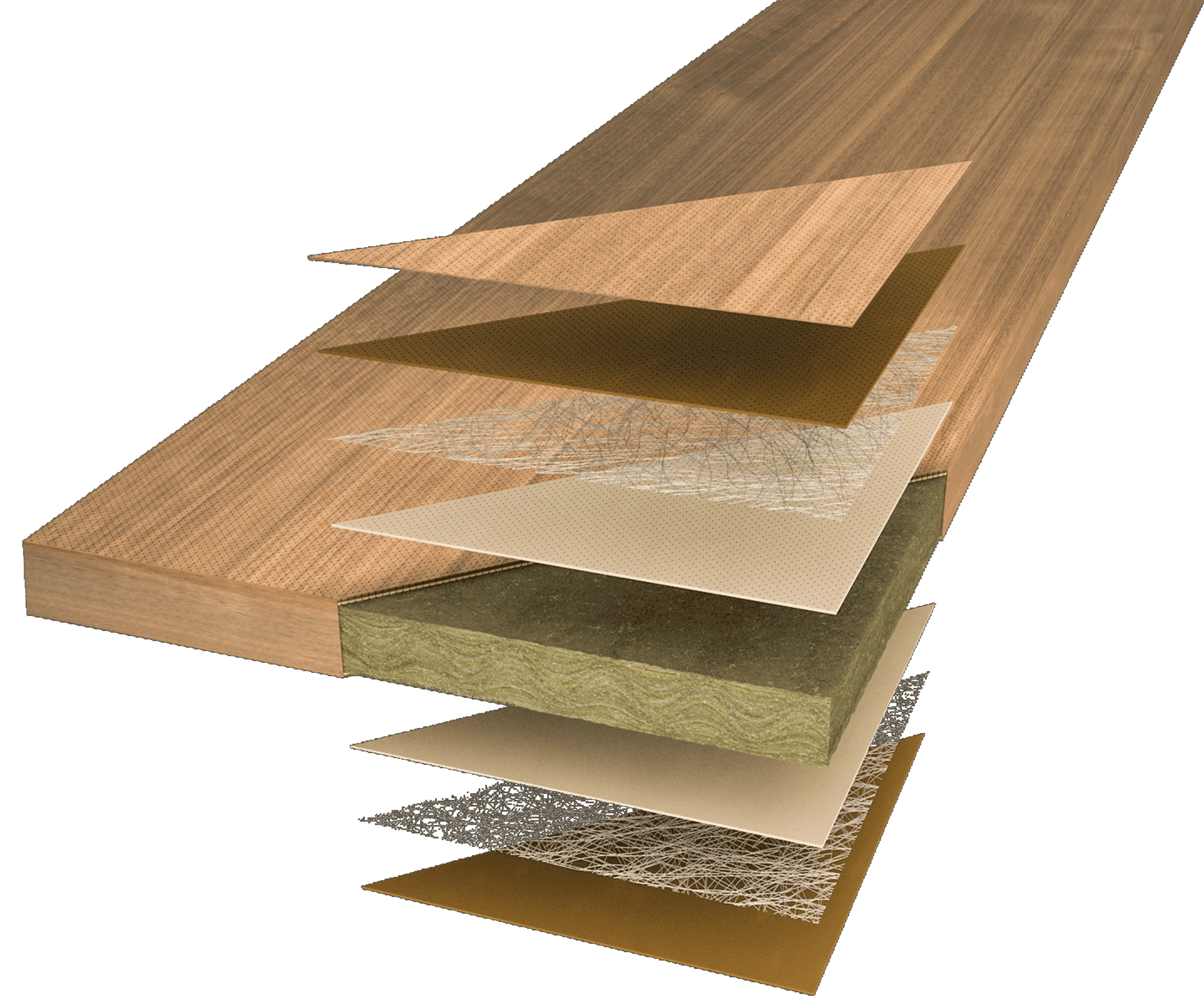

Material

Acoustic Ceiling Planks consisting of a fully sealed, sound insulated, resonant cavity overlayed with a 2mm thick micro-perforated multi-ply surface.

Face Options

• 715+ Wood Species/Slice/Grade combinations
• Custom Paint Colors in a variety of sheens
• Printed Images up to 1080dpi, color-fast UV cured

Finish Options

• Custom Stains for Wood Veneers
• Clear or Tinted Catalyzed Lacquer
• Clear or Tinted Ulti-Matte™ Flat Varnish

Weight

PL-LRM19 / PL-RFM19 (¾” thick) 1.5 lbs/ft²
PL-LRM25 / PL-RFM25 (1” thick) 1.8 lbs/ft²
PL-LRM38 / PL-RFM38 (1½” thick) 2.5 lbs/ft²
PL-LRM51 / PL-RFM51 (2” thick) 3.2 lbs/ft²

Fire Performance

Lino Planks contain either a non-combustible rockwool or fiberglass core. A thin (less than .025 inches) layer of veneer, paint, or film finish is applied. Lino Planks can be used in Class A environments (IBC Chapter 8. Section 803).

LEED Credits

LRRFMRc4 4.1 & 4.2 Recycled Content
15.6% pre-consumer, 8.7% post-consumer.

LRRFBDCv4  EQ Acoustic Performance
LRRFEQ 4.4 Low Emitting Materials
LRRFMaterial Ingredient Disclosure
